[FMT5.0-100H] 100Watt FM broadcast transmitter

FEATURE

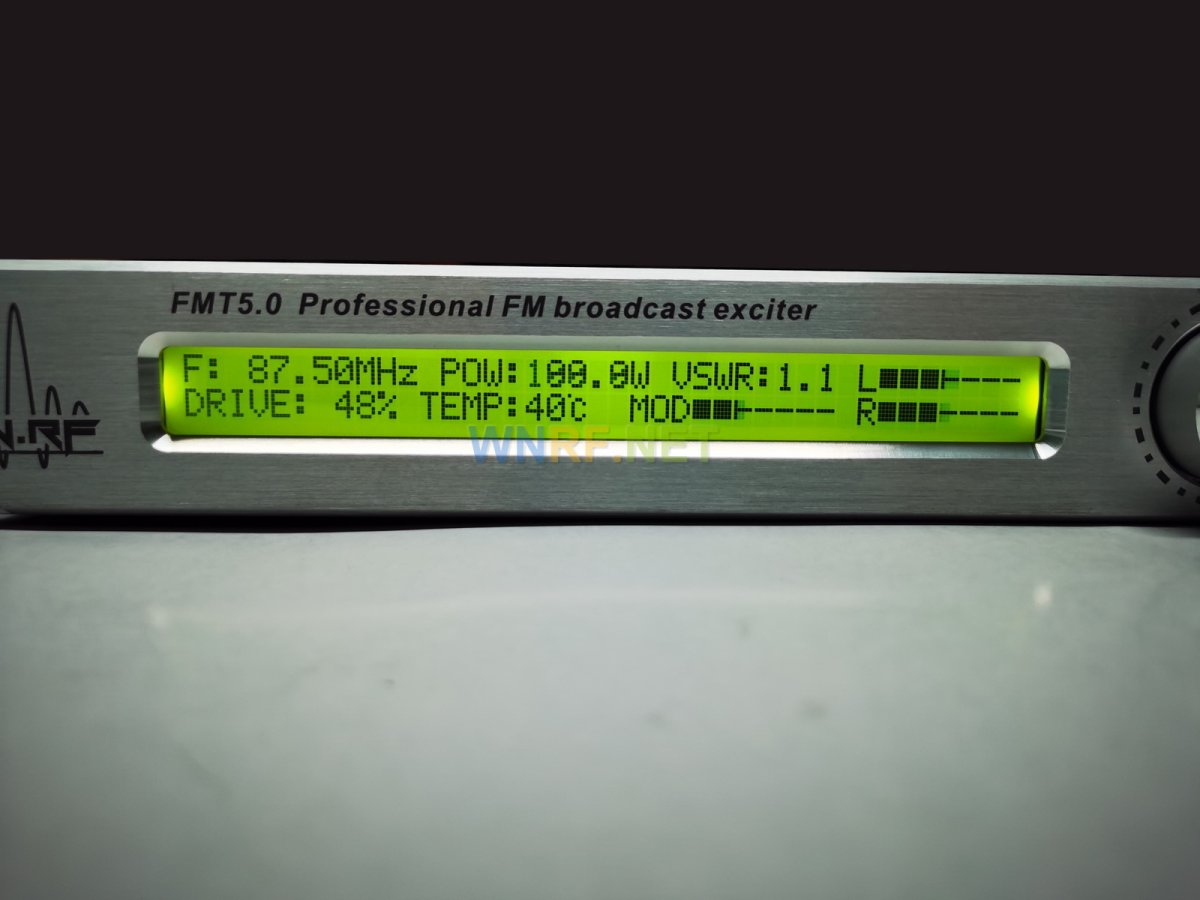

• The integrated LCD displays all system parameters: transmitter frequency, stereo and mono, volume, amplifier tube temperature, audio signal UV meter, forward power, reflected power, modulation mode, and pre-emphasis etc.

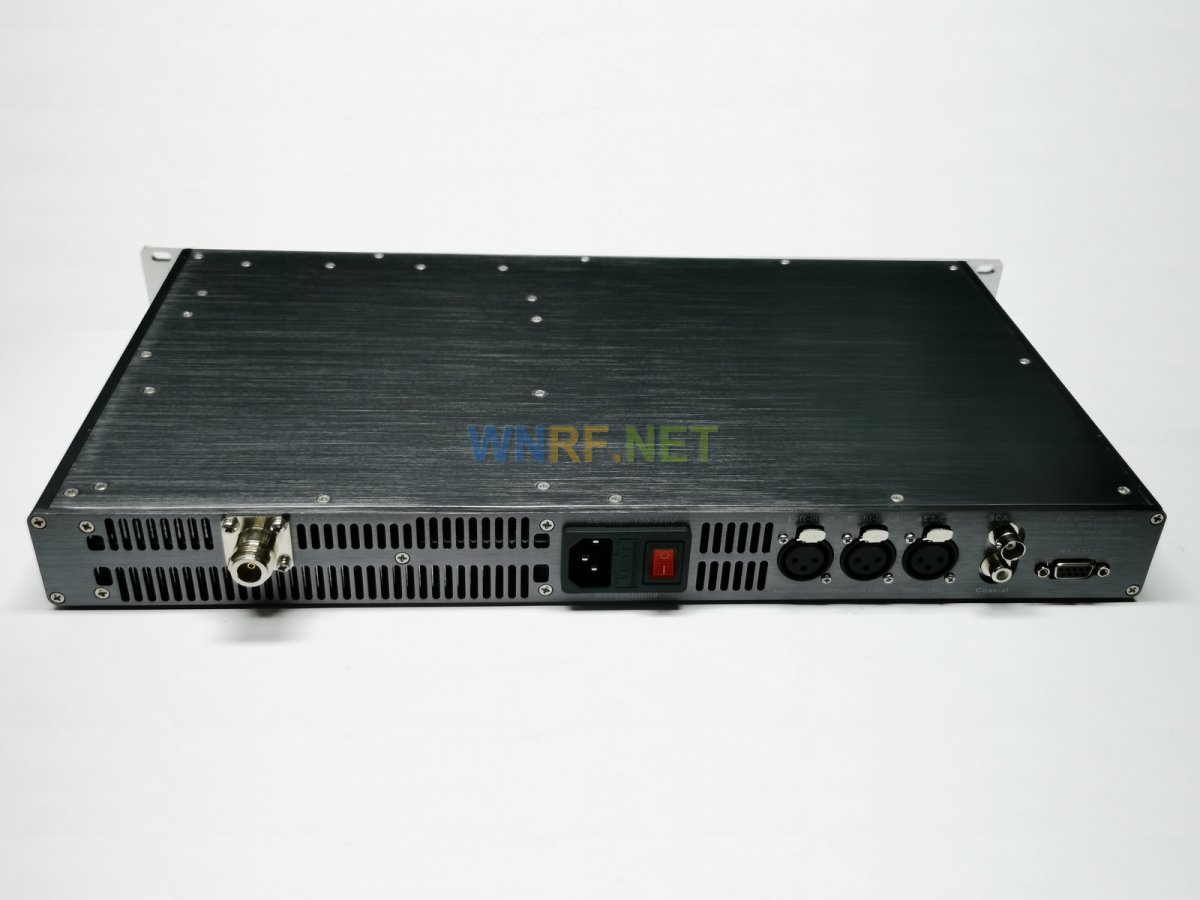

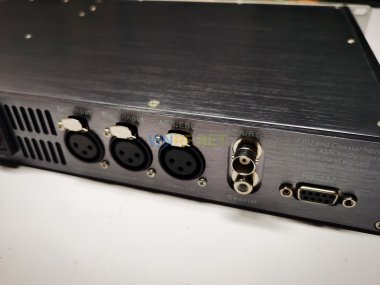

• Accurate PLL frequency generation system to ensure that the frequency will not drift for 10 years, independent high-quality professional stereo encoder (using the classic PLL + stereo MPX circuit upgrade and improvement with almost the same sound quality index as DDS + DSP). The signal input not only supports XLR audio input, but also supports external MPX signal, SCA signal and RDS signal input using BNC connector AUX. Support AES-EBU digital signal input, input range of 24Bit 192KHz sampling rate, true lossless audio (signal automatic selection, priority AES).
• Excellent power AGC balance control system, power output adjustable from 0 to 100 watts, with automatic gain power control to maintain output power within the set range without drift.
• The RF power amplifier uses NXP LDMOS transistors, it is able to withstand severe load mismatch of more than 65: 1 VSWR at 5dB compression point.

Specification

Package Include

• 1* 100Watt FM transmitter
• 1* American standard power cord
• 1* User manual
